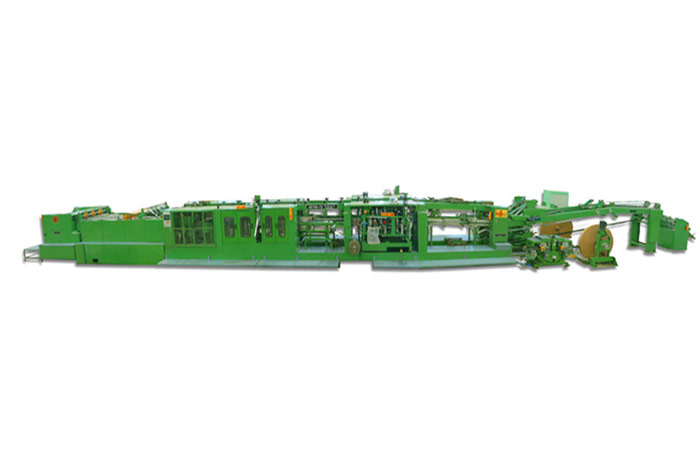

Main Technical Specifications of HD100-ID Bottom Pasting Machine with Printing Machine
1. Has the function of pasting valve paper：Paper belt of valve width 150-300mm,length 140-290mm.Has the function of pasting reinforced valve, external sleeve valve and internal sleeve valve.
2. Has the function of bag bottom pasted reinforcing pieces of paper. Reinforcement paper weight 75-90g/㎡，the paper belt width 80-125mm, paper length 200-450 mm, paper plate diameter max 1300 mm.
3. Total Power:21.36kW. （A total of 13 sets of motor, which including: main motor 7.5kW x 1 set, sorting motor 1.1kW x 1 set, glue pump 0.75 x 4 set=3.0kW, automatic correction of motor 0.07kW X3 sets =0.21kW, lifting motor for paper plate 0.75kW X3 sets=2.25kW, German dry vacuum pump7.3kW x 1 set, ）
4. Total Weight: 24.20 T
5. Exterior Dimensions: 24.80m ×4.7m × 1.90m
6. Operation Panel (Touch Screen): DELTA
7. Control PLC: DELTA
8. Speed Control Equipment: DELTA converter
9. Electrical Control Cabinet: 1 set
10. Customer Power Supply Conditions: 380 ± 10V 50HZ 3ф 4L AC
11. The high pressure air supplied by the buyer shall meet the pressure 0.8MPa, air demand 1.7m³/ min. The high pressure air is dehumidified, dusted and purified;
12. Equipped with german vacuum pump(ultimate vacuum mbar 0.5 300 m³/h 7.3kW）
13. The surface paint of the bottom machine is color
