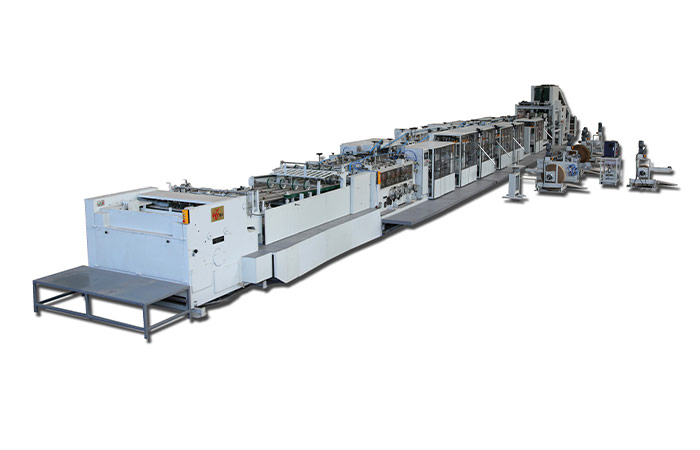

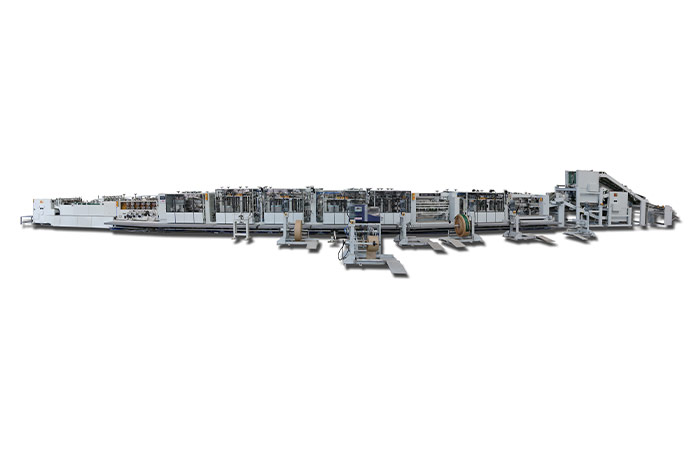

The outer reinforcing device equips with servo motor which has the function of tracking and pasting for pre-printed paper plate;
The internal and external strengthening device is equipped with differential speed device, the position of pasting paper belt can be online adjusted.
1. In order to ensure to open the bottom regularly, equipped with the pressure on both ends of 45°forward and reverse stitch line trace for tube, press distance of between sack bottom and longitudinal slitting device, the device is equipment with differential parts which can be non-stop adjustment in the equipment operation;
2. Sack Square Bottom Width: 80-210 mm(can be adjusted in this range)
3. Equipped With the Pasting Device of First Valve:
A. Has the function of pasting reinforced valve, external sleeve valve and internal sleeve valve ;
B. Paper Belt of Valve: width 130-430mm,length 150-250mm ;
C. Has the function of pasting reinforced valve (paper+ PE or paper+ cotton paper), the diameter of reel roll of PE or cotton paper ≤600mm, the diameter of paper plate of valve ≤1300mm;
D. Equipped with Online “ thumb mouth” cutting device for external sleeve valve.
4. Equipped With the Pasting Device of Second Valve:
A. Valve paper width 150-430mm, length 150-250mm, paper plate maximum diameter 1300mm；
B. Equipped with servo motor drive and online valve tube machine, has the function of make big bottom small valve and pasting the same size bottom sleeve valve;
C. Hot melt glue machine can pasting PE lamination tube valve and PE coated paper valve;
D. Equipped with online “ thumb mouth” cutting device for external sleeve valve;
E. Equipped servo drivers which can be non-stop adjustment in the equipment operation.
5. Has the function of bag bottom pasted inside and outside reinforcing pieces of paper.
A. Equipped of inside paper belt: width 80-260mm, paper length 220-550 mm, paper plate diameter max 1300 mm, use paper grammage 60-100g/m³;
B. Equipped of outside paper belt: width 80-200mm, paper length 220-550 mm, paper plate diameter max 1300 mm, use paper grammage 70-100g/m³;
The outer reinforcing device equips with servo motor which has the function of tracking and pasting for pre-printed paper plate;
The internal and external strengthening device is equipped with differential speed device, the position of pasting paper belt can be online adjusted.
6. Configuration s-shaped path big wheel clamping output system, preliminary glue bag by the extended holding time and increase the clamping force, bag stronger adhesion, and can reduce the usage of glue, paper drying time.
7. Total Power: 58.15kW. (A total of thirty-seven motors, which including:
| Name | Power（kw） | Qty | Tot Power（kW) | |
| Servo Motor：
5sets: 5.25kW |
Control servo motor for standard tracking of online pre-printed paper disk | 1.0 | 2 | 2.0 |
| Second valve glue device motor | 1.5 | 1 | 1.5 | |
| Tube valve servo motor | 1.0 | 1 | 1.0 | |
| Thumb mouth” cutting device motor | 0.75 | 1 | 0.75 | |
| Asynchronous Motor:
41sets: 56.52kW |
Main motor | 15 | 1 | 15 |
| Automatic correction of motor | 0.07 | 7 | 0.49 | |
| Glue device motor | 0.75 | 8 | 6.00 | |
| Uniform glue motor | 0.20 | 8 | 1.60 | |
| Lifting motor for paper plate | 0.75 | 6 | 4.50 | |
| Output drive motor for S-shaped holding | 1.10 | 2 | 2.20 | |
| Adjustment motor for distance of bag bottom center | 0.37 | 2 | 0.74 | |
| Drive motor for removing unqualified bag | 0.25 | 2 | 0.50 | |
| Air compressor | 11 | 1 | 11 | |
| Vacuum pump | 5.50 | 2 | 11 | |
| Compressed air dryer | 0.69 | 1 | 0.69 | |
| Hot melt glue machine | 2.80 | 1 | 2.80 |
8. Equipped with 8 sets of providing diaphragm pump
9. Total Weight: about 56.8 T
10. Boundary Dimension: 37800mm ×11000mm × 3440mm
11. Operation Panel (Touch Screen): DELTA
12. Control PLC: DELTA
13. Speed Control Equipment: DELTA converter
14. Electrical Control Cabinet: 1 set
15. Customer Power Supply Conditions: 380 ± 10V 50HZ 3ф 4L AC
16. Working Environment: indoor temperature 5℃-32℃，relative humidity 40%-75%
17. A store jar （0.8MPa 1.5m3）
18. A Compressed Air Refrigerated Dryer: 1 set (0.69kw)
19. Two Pieces of Vacuum pump (-0.6MPa 2.50m3/min×2 =5.0m3/min 5.5kW×2 =11kW)
20. Equipped with a screw air compressor 1 set (0.8 MPa 1.70 m3/min 11kW)
