HD100-IB Square Bottom Machine

Maximum Production Output: 150 pcs/min
Distance of Between Sack Bottom Centers: 350-680mm
Tube Width: 380-550mm
Sack Bottom Width: 80-125 mm
Basic Configuration:
Equipped with a sets of forming attachments and glue wheel, used to make the sacks with bottom width and tube width, and accessories for pasting one kind of valve reinforce sheet. (If add other configuration, the buyer can be proposed and agreed upon when commercial negotiations.)

Technical Specifications

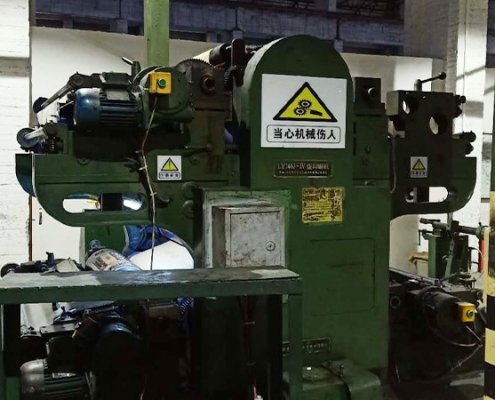

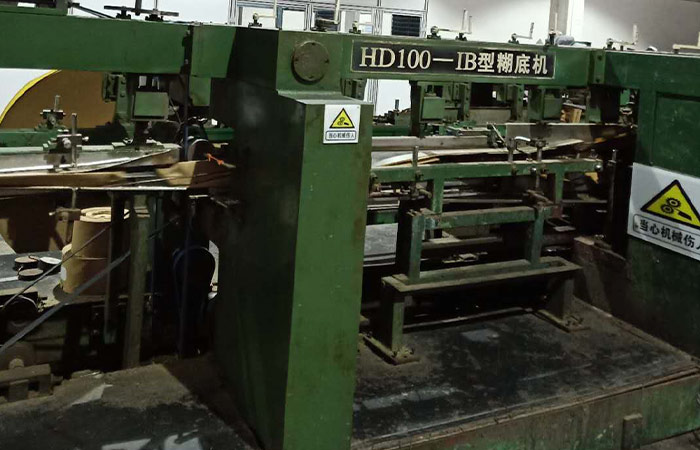

Detail Photos

Main Technical Specifications of HD100-IB Bottom Pasting Machine

1. Has the function of pasting reinforced valve, external sleeve valve and internal sleeve valve;paper belt of valve: 120-275mm, length 120-250mm, the diameter of paper plate of valve≤1300mm.

2. Total Power:23.32kW. A total of 6 sets of motor, which including: main motor 7.5kW x 1 set, sorting motor 1.1kW x 1 set, glue pump 0.75 x 1 set, compressed air refrigerated dryer 0.97kw x 1 set, vacuum pump 5.5kW x 1 set, Screw Compressors 7.5kw x 1 set.

3. Total Weight: 23.80 T

4. Exterior Dimensions: 22.2m ×2.9m × 1.90m

5. Operation Panel (Touch Screen): DELTA

6. Control PLC: DELTA

7. Speed Control Equipment: DELTA converter

8. Electrical Control Cabinet: 1 set

9. Customer Power Supply Conditions: 380 ± 10V 50HZ 3ф 4L AC

10. A Screw Air Compressor (0.8MPa 1.20m3/min 7.5kW)

11. A Store Jar (0.8MPa 1.0m3)

12. A Compressed Air Refrigerated Dryer: 1 set (0.97kW)

13. A Vacuum Pump (-0.093MPa 2.80m3/min 5.5kW)
