Technical Parameters of Tube Machine
| Model |
HT135—I |
HT85—I |
HT135—I(1) |
HT125—II |
HT100—I |
| Bag tube length（mm） |
620-900 |
900-1320 |
700-900 |
620-1000 |
700-850 |
| Bag tube width（mm） |
380-550 |
350-550 |
400-550 |
350-550 |
500-550 |
| Web width（mm） |
≤1120 |
≤1120 |
≤1120 |
≤1120 |
1020-1120 |
| Web diameter（mm） |
≤1300 |
≤1300 |
≤1300 |
≤1300 |
≤1300 |
| Compressed air（0.8MPa)（m³/min） |
0.9 |
1 |
1 |
1 |
1 |
| Yield（pc/min） |
135 |
85 |
135 |
125 |
100 |
| Equipment power（KW） |
22.47 |
21.48 |
21 |
24.5 |
19.5 |
| Equipment size（mxmxm） |
32.3×2.85×2.5 |
33×2.9×2.7 |
32×2.8×2.5 |
32×2.8×2.5 |
32×2.8×2.5 |
| Equipment weight（ t） |
25.8 |
25.6 |
25.6 |
25.6 |
25.2 |
Process Flow Chart of Drum Making Machine

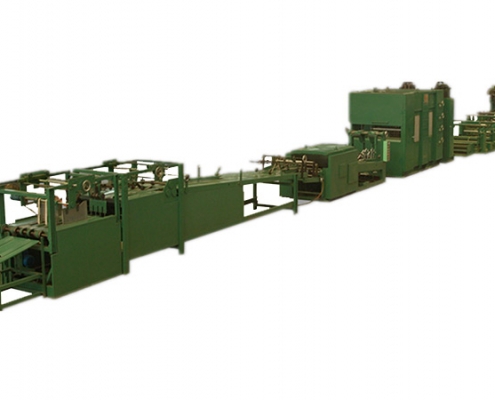

Main Technical Specifications of HT120-IA Tube Machine
1. Equipped with LY1465 – ⅣOn-line Four-Color Flexo Printing Machine
1) Production Output: Synchronize with the tube machine.
2) Four-color flexo printing (Use water-based ink)
3) Maximum Print Width: 1050mm
4) Length Range: 560-960mm
5) Total Power: Nine motors in total 4.60 (kW)
6) Total Weight: 6.50 T
7) Dimensions: L 2360 x W 2860 x H 2600mm
8) Electrical Control Cabinet: 1 set
9) The printing press is painted color
10) Basic Configuration: equipped with a length of specifications bag tube round version roll 4 pieces and complete set of gears (If add other configuration, the buyer can be proposed and agreed upon when commercial negotiations)
2. Equipped with a PE film adding machine, can make up to 4E+1PE paper bags.
3. Total power(With the printer): 13.84kW (A total of 18 sets of motor. Which including : main motor 7.5 KW x 1 set, sorting motor 1.1 KW x 1set, ladder adjustment motor 0.12 KW x 3 sets=0.36KW, Correction linear motor 0.07 KW x 4 sets=0.28KW , hydraulic pump station motor 1.1kw x1 set, uniform ink motors 0.75kW × 4 sets =3.0kW, ink motors 0.125kW × 4 sets=0.5kW.)
4. Total Weight: 26.40 T
5. Exterior Dimension: 30.25m×3.00m×2.60m (including a printing machine)
6. Equipped with 4 pneumatic semi-automatic paper scroll racks with auxiliary paper tray, equivalent to eight paper holders and save space. Maximum diameter of paper roll is 1300mm. Core diameter of roll paper is 76mm (3 inches).
7. Adapt to the paper grammage: 70g-120g/m2
8. Control System: DELTA PLC
9. Speed Control Equipment: DELTA converter
10. Operation Panel (Touch Screen ):DELTA converter
11. Customer Power Supply Conditions: 380 ± 10V 50HZ 3ф 4L AC
12. Electrical Control Cabinet: 1 set
13. The tuber surface is painted .
